NCV887302D1R2G Tvs Diode Smd Automotive Switcher 88-NCV887302D1R2GTR-ND

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

NCV887302D1R2G Tvs Diode Smd Automotive Switcher 88-NCV887302D1R2GTR-ND

Brand Name : original

Model Number : NCV887302D1R2G

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Clock Sync : Yes

Synchronous Rectifier : No

Control Features : Current Sense, Enable

Operating Temperature : -40°C ~ 150°C (TJ)

Mounting Type : Surface Mount

Package / Case : 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package : 8-SOICDT

Base Product Number : NCV887302

Contact Now

NCV887302D1R2G Tvs Diode Smd Automotive Switcher 88-NCV887302D1R2GTR-ND

Boost Regulator Positive Output Step-Up DC-DC Controller IC 8-SOIC

Specifications of NCV887302D1R2G

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
Mfr onsemi
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Output Type Transistor Driver
Function Step-Up
Output Configuration Positive
Topology Boost
Number of Outputs 1
Output Phases 1
Voltage - Supply (Vcc/Vdd) 3.2V ~ 40V
Frequency - Switching 400kHz
Duty Cycle (Max) 92.50%
Synchronous Rectifier No
Clock Sync Yes
Serial Interfaces -
Control Features Current Sense, Enable
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number NCV887302

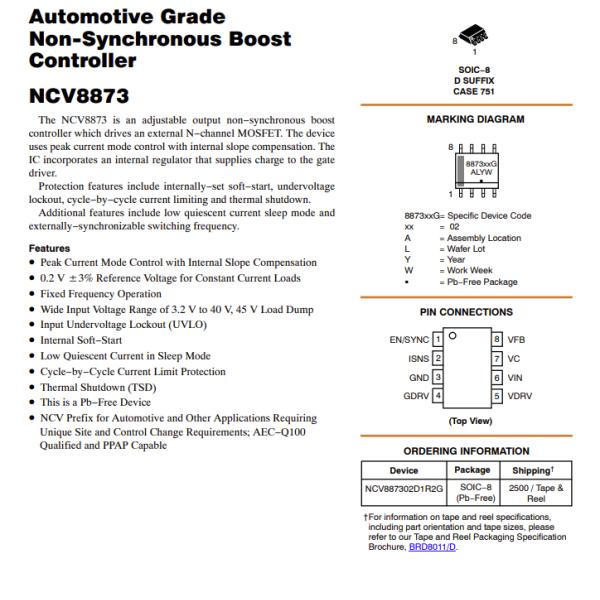

FEATURES of NCV887302D1R2G

• Peak Current Mode Control with Internal Slope Compensation
• 0.2 V 3% Reference Voltage for Constant Current Loads
• Fixed Frequency Operation
• Wide Input Voltage Range of 3.2 V to 40 V, 45 V Load Dump
• Input Undervoltage Lockout (UVLO)
• Internal Soft−Start
• Low Quiescent Current in Sleep Mode

Applications of NCV887302D1R2G

• Cycle−by−Cycle Current Limit Protection
• Thermal Shutdown (TSD)
• This is a Pb−Free Device

Environmental & Export Classifications of NCV887302D1R2G

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
