DRV5053OAQDBZR Hall Effect Sensor Single Axis SOT-23-3

Brand Name : original

Model Number : DRV5053OAQDBZR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Axis : Single

Output Type : Analog Voltage

Sensing Range : ±73mT

Voltage - Supply : 2.5V ~ 38V

Current - Supply (Max) : 3.6mA

Current - Output (Max) : 2.3mA

Bandwidth : 20kHz

Operating Temperature : -40°C ~ 125°C (TA)

Contact Now

DRV5013ADQDBZR Digital Switch Latch Open Drain Hall Effect SOT-23-3

Specifications of DRV5053OAQDBZR

TYPE DESCRIPTION
Category Sensors, Transducers
Magnetic Sensors
Linear, Compass (ICs)
Mfr Texas Instruments
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Cut Tape (CT)
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range ±73mT
Voltage - Supply 2.5V ~ 38V
Current - Supply (Max) 3.6mA
Current - Output (Max) 2.3mA
Resolution -
Bandwidth 20kHz
Operating Temperature -40°C ~ 125°C (TA)
Features Temperature Compensated
Supplier Device Package SOT-23-3
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Base Product Number DRV5053

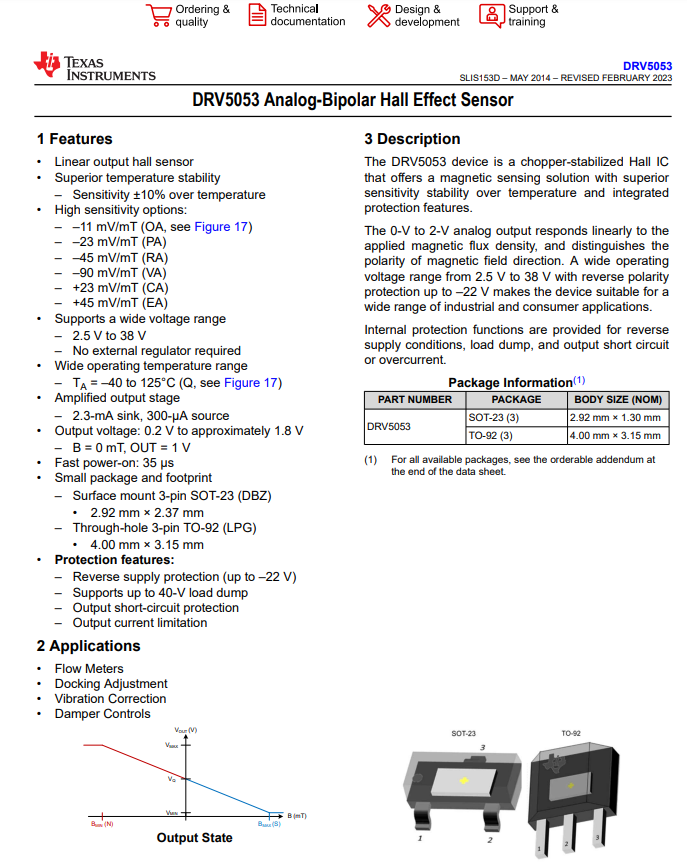

Features of DRV5053OAQDBZR


• Linear output hall sensor
• Superior temperature stability
– Sensitivity ±10% over temperature
• High sensitivity options:
– –11 mV/mT (OA, see Figure 17)
– –23 mV/mT (PA)
– –45 mV/mT (RA)
– –90 mV/mT (VA)
– +23 mV/mT (CA)
– +45 mV/mT (EA)
• Supports a wide voltage range
– 2.5 V to 38 V
– No external regulator required
• Wide operating temperature range
– TA = –40 to 125°C (Q, see Figure 17)
• Amplified output stage
– 2.3-mA sink, 300-µA source
• Output voltage: 0.2 V to approximately 1.8 V
– B = 0 mT, OUT = 1 V
• Fast power-on: 35 µs
• Small package and footprint
– Surface mount 3-pin SOT-23 (DBZ)
• 2.92 mm × 2.37 mm
– Through-hole 3-pin TO-92 (LPG)
• 4.00 mm × 3.15 mm
• Protection features:
– Reverse supply protection (up to –22 V)
– Supports up to 40-V load dump
– Output short-circuit protection
– Output current limitation


Applications of DRV5053OAQDBZR


• Flow Meters
• Docking Adjustment
• Vibration Correction
• Damper Controls

Environmental & Export Classifications of DRV5053OAQDBZR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
