DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6

Brand Name : original

Model Number : DAC5311IDCKR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Bits : 8

Number of D/A Converters : 1

Settling Time : 12µs (Typ)

Output Type : Voltage - Buffered

Differential Output : No

Data Interface : SPI, DSP

Reference Type : Supply

Voltage - Supply, Analog : 2V ~ 5.5V

Contact Now

DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6

Specifications of DAC5311IDCKR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Number of Bits 8
Number of D/A Converters 1
Settling Time 12µs (Typ)
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type Supply
Voltage - Supply, Analog 2V ~ 5.5V
Voltage - Supply, Digital 2V ~ 5.5V
INL/DNL (LSB) ±0.01, ±0.01
Architecture String DAC
Operating Temperature -40°C ~ 125°C
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Mounting Type Surface Mount
Base Product Number DAC5311


Features of DAC5311IDCKR


* Relative Accuracy
- 0.25 LSB INL(DAC5311: 8-Bit)
- 0.5 LSB INL(DAC6311: 10-Bit)
- 1 LSB INL(DAC7311: 12-Bit)
* microPower Operation: 80 A at 2.0 V
* Power-Down: 0.5 A at 5 V, 0.1 A at 2.0 V
* Wide Power Supply: 2.0 V to 5.5 V
* Power-On Reset to Zero Scale
* Straight Binary Data Format
* Low Power Serial Interface With Schmitt-Triggered Inputs: up to 50 MHz
* On-Chip Output Buffer Amplifier, Rai-to-RailOperation
* SYNC Interrupt Facility
* Extended Temperature Range -40°C to +125C
* Pin-Compatible Family in a Tiny, 6-Pin SC70Package


Applications of DAC5311IDCKR


* Portable, Battery-Powered instruments
* Process Controls
* Digital Gain and Offset Adjustment
* Programmable Voltage and Current Sources

Environmental & Export Classifications of DAC5311IDCKR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6


DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6 Manufactures

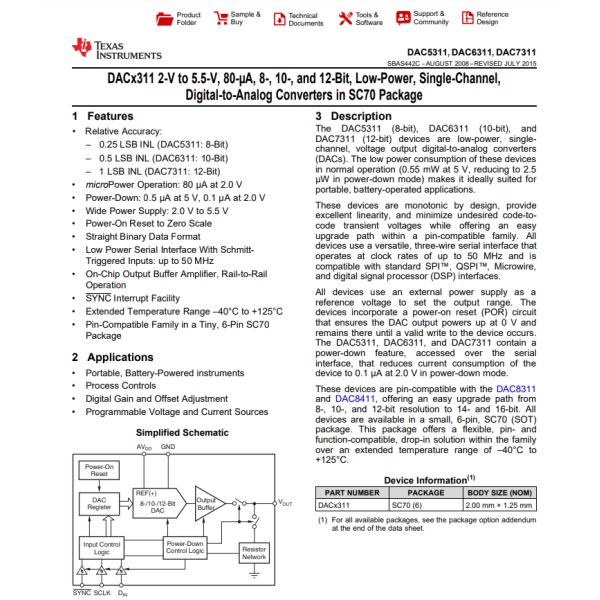

DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6 Images
